For the STid Wiegand readers to match the STid Desktop reader format, they need to be set to format 15 in GP10
For each relevant reader, go to "Infrastructure" in GP10 and open the reader settings.

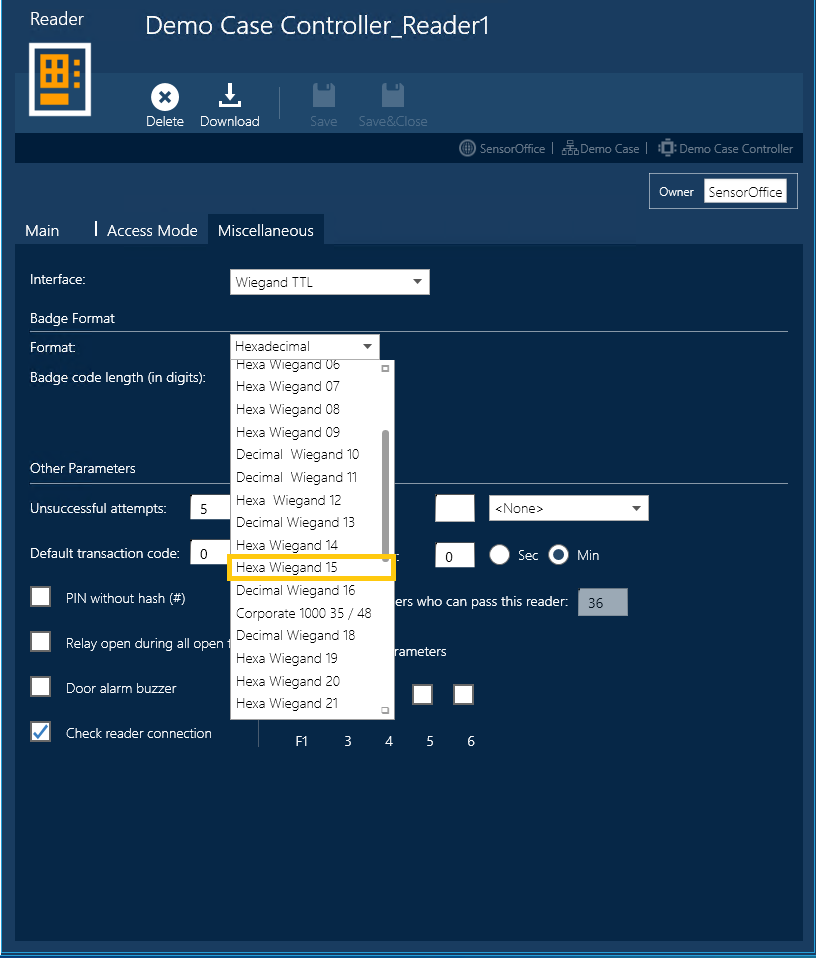

Go to the "Miscellaneous" tab and change the "Format" to "Hexa Wiegand 15".
Important Note: Numlock will need to be kept on while the STid Desktop reader is in use, as the reader sends numpad codes.
