GuardPoint10 API Center General Description

Introduction

The RESTful API uses HTTP requests to GET, PUT, POST, and DELETE data.
This document is intended for developers.

If you have any suggestions or requirements, please send them to support@sensoraccess.co.uk

General

GuardPoint10 introduces a RESTful API based on the ODATA protocol to retrieve information from GuardPoint10 and create actions within its access control system.

The API is divided into the following sections:

• Management: Includes management resources such as Cardholders, Badges, etc.



• Access control: Includes commands related to relays, polling, controllers, initialization, etc.



• Software control: Includes GUI-related actions such as open screens, log in/out, etc.



• Monitoring: Includes resources for handling events received from the GuardPoint10 environment.



The API is built with .NET Core 2.1 and is hosted as a Windows service.

ODATA

The ODATA protocol provides an extensive and standardized way to consume RESTful, queryable APIs.
It also exposes tools for various programming languages.
Learn more about ODATA here

Push Events (SignalR)

Events from GuardPoint10 are pushed to API clients through SignalR, an open-source technology led by Microsoft.
SignalR clients exist across major platforms and languages.
More information can be found here

Postman

5.1 Introduction

To simplify integration, we provide a Postman collection containing examples and tests.
This serves as the main API documentation resource.

Postman is a free tool for managing RESTful API calls and can also act as a testing tool.
Download Postman and tutorials here

5.2 Environment Variables for Testing

Environment variables make testing the API faster and easier.
After fetching entities (via GET), their UIDs are stored as environment variables (e.g. {{cardholderUID}}).
These variables are automatically used in subsequent requests.

You can edit or add new variables as needed.

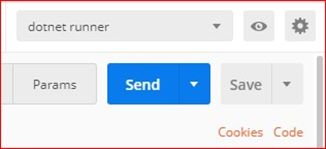

View and edit them from the top right of the Postman window.

Start Working with the API

The API Center communicates with GuardPoint10 through the AcsServer.
Ensure that the following services are running:

• AcsServer



• AcsNmService



• AcsApiServer



You can open the GuardPoint10 GUI for feedback, but it’s not required for the API to function.
As long as these services are active, the API can communicate with your system.

We provide:

• A Postman collection of demo URLs



• A Visual Studio solution that demonstrates using the API in .NET

API Key vs UID

Authentication and Authorization

All API call headers must include:

Authorization: [username + user-specific API key]

The user must be authorized in GuardPoint10 to use the API.

Setup Steps

1. Open the Users Screen in GuardPoint10.

2. Select the user (e.g., admin).

3. Set Allow API = Yes.

4. Generate or enter a unique GUID (not all zeros).

5. Save.

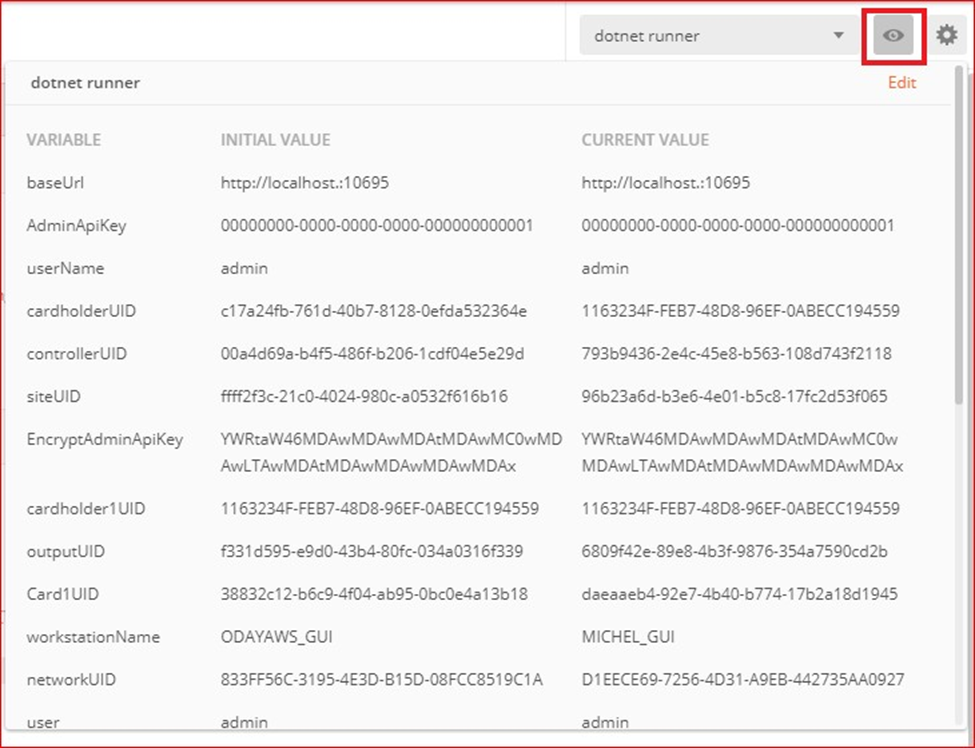

6. In Postman, open Environment Quick Look (top right).

7. Set:

   • ApiAdminKey to the GUID created

   • User to the same value as the username in GuardPoint10

Translation (Multilanguage)

The API responses are in English by default and include error codes for translation.
Controller type names are also in English.

Available Operations

REST API (ODATA)

PATCH (by UID)

DELETE (by UID)

POST (All/Many or by UID)

SignalR

Troubleshooting

Response 401 – Not Authorized:

Verify that:

• User credentials match between GuardPoint10 and API



• The user has Allow API enabled
